bind9-笔记

发表于 更新于 分类于

bind9

主配置文件

/etc/bind/bind.conf

引入配置文件,卸载主配置文件中

每个条目后面应该加上分号做分割

include "/etc/bind/myconf.conf";

zone：区域

定义格式：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
zone string optional_class {
type ( master | slave | stub | hint |
/*
Master（主域）：主域用来保存某个区域（如www.wzvtc.cn）的数据信息。
Slave（辅域）：也叫次级域，数据来自主域，起备份作用。
Stub：Stub区与辅域相似，但它只复制主域的NS记录，而不是整个区数据。它不是标准DNS的功能，只是BIND提供的功能。
Forward（转发）：转发域中一般配置了 forward和forwarders子句，用于把对该域的查询请求转由其他DNS服务器处理。
Hint：Hint域定义了一套最新的根DNS服务器地址，如果没有定义，DNS服务器会使用内建的根DNS服务器地址。

*/

forward | delegation-only );

file quoted_string;

masters [ port integer ] {

( masters |

ipv4_address [port integer] |

ipv6_address [ port integer ] ) [ key string ]; ...

};

database string;

delegation-only boolean;

check-names ( fail | warn | ignore );

check-mx ( fail | warn | ignore );

check-integrity boolean;

check-mx-cname ( fail | warn | ignore );

check-srv-cname ( fail | warn | ignore );

dialup dialuptype;

ixfr-from-differences boolean;

journal quoted_string;

zero-no-soa-ttl boolean;

dnssec-secure-to-insecure boolean;

allow-query { address_match_element; ... };

allow-query-on { address_match_element; ... };

allow-transfer { address_match_element; ... };

allow-update { address_match_element; ... };

allow-update-forwarding { address_match_element; ... };

update-policy local | {

( grant | deny ) string

( name | subdomain | wildcard | self | selfsub | selfwild |

krb5-self | ms-self | krb5-subdomain | ms-subdomain |
tcp-self | zonesub | 6to4-self ) string
rrtypelist;

[...]

};

update-check-ksk boolean;

dnssec-dnskey-kskonly boolean;

masterfile-format ( text | raw );

notify notifytype;

notify-source ( ipv4_address | * ) [ port ( integer | * ) ];

notify-source-v6 ( ipv6_address | * ) [ port ( integer | * ) ];

notify-delay seconds;

notify-to-soa boolean;

also-notify [ port integer ] { ( ipv4_address | ipv6_address )

[ port integer ]; ... };

allow-notify { address_match_element; ... };

forward ( first | only );

forwarders [ port integer ] {

( ipv4_address | ipv6_address ) [ port integer ]; ...

};

max-journal-size size_no_default;

max-transfer-time-in integer;

max-transfer-time-out integer;

max-transfer-idle-in integer;

max-transfer-idle-out integer;

max-retry-time integer;

min-retry-time integer;

max-refresh-time integer;

min-refresh-time integer;

multi-master boolean;

sig-validity-interval integer;

transfer-source ( ipv4_address | * )

[ port ( integer | * ) ];

transfer-source-v6 ( ipv6_address | * )

[ port ( integer | * ) ];

alt-transfer-source ( ipv4_address | * )

[ port ( integer | * ) ];

alt-transfer-source-v6 ( ipv6_address | * )

[ port ( integer | * ) ];

use-alt-transfer-source boolean;

zone-statistics boolean;

try-tcp-refresh boolean;

key-directory quoted_string;

nsec3-test-zone boolean; // testing only

ixfr-base quoted_string; // obsolete

ixfr-tmp-file quoted_string; // obsolete

maintain-ixfr-base boolean; // obsolete

max-ixfr-log-size size; // obsolete

pubkey integer integer integer quoted_string; // obsolete

};

zone配置文件样例：

1
2
3
4
5
6
7
8
9
10
11
$ cat myconf.conf
zone "divint3.club" {
        type master; //主类型
        file "/etc/bind/db.club"; //区域配置文件
};


zone "124.93.47.in-addr.arpa" {
        type master;
        file "/etc/bind/db.47";
};

acl：访问控制列表

定义格式：

1
2
3
acl acl-name {
    address_match_list
};

acl配置文件样例：

1
2
3
4
5
6
7
8
acl "divint3" {
	192.168.0.1; 192.168.0.2; 192.168.0.3; //定义一个acl列表，包含了三个ip
};
zone "divint3.club" {
	type master;
	file "/etc/bind/db.club";
	allow-query{"divint3"}; //引用acl列表
};

view ：视图

格式定义：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
view string optional_class {
match-clients { address_match_element; ... };
match-destinations { address_match_element; ... };

match-recursive-only boolean;

key string {

algorithm string;

secret string;

};

zone string optional_class {

...

};

server ( ipv4_address[/prefixlen] | ipv6_address[/prefixlen] ) {

...

};

trusted-keys {

string integer integer integer quoted_string;

[...]

};

allow-recursion { address_match_element; ... };

allow-recursion-on { address_match_element; ... };

sortlist { address_match_element; ... };

topology { address_match_element; ... }; // not implemented

auth-nxdomain boolean; // default changed

minimal-responses boolean;

recursion boolean;

rrset-order {

[ class string ] [ type string ]

[ name quoted_string ] string string; ...

};

provide-ixfr boolean;

request-ixfr boolean;

rfc2308-type1 boolean; // not yet implemented

additional-from-auth boolean;

additional-from-cache boolean;

query-source ( ( ipv4_address | * ) | [ address ( ipv4_address | * ) ] ) [ port ( integer | * ) ];

query-source-v6 ( ( ipv6_address | * ) | [ address ( ipv6_address | * ) ] ) [ port ( integer | * ) ];

use-queryport-pool boolean;

queryport-pool-ports integer;

queryport-pool-updateinterval integer;

cleaning-interval integer;

resolver-query-timeout integer;

min-roots integer; // not implemented

lame-ttl integer;

max-ncache-ttl integer;

max-cache-ttl integer;

transfer-format ( many-answers | one-answer );

max-cache-size size;

max-acache-size size;

clients-per-query number;

max-clients-per-query number;

check-names ( master | slave | response )

( fail | warn | ignore );

check-mx ( fail | warn | ignore );

check-integrity boolean;

check-mx-cname ( fail | warn | ignore );

check-srv-cname ( fail | warn | ignore );

cache-file quoted_string; // test option

suppress-initial-notify boolean; // not yet implemented

preferred-glue string;

dual-stack-servers [ port integer ] {

( quoted_string [port integer] |

ipv4_address [port integer] |

ipv6_address [port integer] ); ...

};

edns-udp-size integer;

max-udp-size integer;

root-delegation-only [ exclude { quoted_string; ... } ];

disable-algorithms string { string; ... };

dnssec-enable boolean;

dnssec-validation boolean;

dnssec-lookaside ( auto | no | domain trust-anchor domain );

dnssec-must-be-secure string boolean;

dnssec-accept-expired boolean;

dns64-server string;

dns64-contact string;

dns64 prefix {

clients { <replacable>acl</replacable>; };

exclude { <replacable>acl</replacable>; };

mapped { <replacable>acl</replacable>; };

break-dnssec boolean;

recursive-only boolean;

suffix ipv6_address;

};

empty-server string;

empty-contact string;

empty-zones-enable boolean;

disable-empty-zone string;

dialup dialuptype;

ixfr-from-differences ixfrdiff;

allow-query { address_match_element; ... };

allow-query-on { address_match_element; ... };

allow-query-cache { address_match_element; ... };

allow-query-cache-on { address_match_element; ... };

allow-transfer { address_match_element; ... };

allow-update { address_match_element; ... };

allow-update-forwarding { address_match_element; ... };

update-check-ksk boolean;

dnssec-dnskey-kskonly boolean;

masterfile-format ( text | raw );

notify notifytype;

notify-source ( ipv4_address | * ) [ port ( integer | * ) ];

notify-source-v6 ( ipv6_address | * ) [ port ( integer | * ) ];

notify-delay seconds;

notify-to-soa boolean;

also-notify [ port integer ] { ( ipv4_address | ipv6_address )

[ port integer ]; ... };

allow-notify { address_match_element; ... };

forward ( first | only );

forwarders [ port integer ] {

( ipv4_address | ipv6_address ) [ port integer ]; ...

};

max-journal-size size_no_default;

max-transfer-time-in integer;

max-transfer-time-out integer;

max-transfer-idle-in integer;

max-transfer-idle-out integer;

max-retry-time integer;

min-retry-time integer;

max-refresh-time integer;

min-refresh-time integer;

multi-master boolean;

sig-validity-interval integer;

transfer-source ( ipv4_address | * )

[ port ( integer | * ) ];

transfer-source-v6 ( ipv6_address | * )

[ port ( integer | * ) ];

alt-transfer-source ( ipv4_address | * )

[ port ( integer | * ) ];

alt-transfer-source-v6 ( ipv6_address | * )

[ port ( integer | * ) ];

use-alt-transfer-source boolean;

zone-statistics boolean;

try-tcp-refresh boolean;

key-directory quoted_string;

zero-no-soa-ttl boolean;

zero-no-soa-ttl-cache boolean;

dnssec-secure-to-insecure boolean;

allow-v6-synthesis { address_match_element; ... }; // obsolete

fetch-glue boolean; // obsolete

maintain-ixfr-base boolean; // obsolete

max-ixfr-log-size size; // obsolete

};

视图配置文件样例：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
acl "CNS"{ //China Net Segment
	1.0.1.0/24; ……;
};

acl "OOC"{ //Out Of China
	1.1.1.0/24;……；
}；

view "China" {
	match-clients {CNS};
	recusion yes; //允许递归
	zone divint3.club {
		type master;
        file "/etc/bind/db.club";
	};
};

view "OutOfChina" {
	match-clients{OOC};
	recusion no;
	zone divint3.club{
		type master;
		file "/etc/bind/db.ooc.club";
	};
};

logging：日志文件配置

定义格式：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
logging {
channel string {
    file log_file;
    syslog optional_facility;
    null;
    stderr;
    severity log_severity;
    print-time boolean;
    print-severity boolean;
    print-category boolean;
};

category string { string; ... };

};

/*
在日志中主要有两个概念：通道（channel）和类别（category）。通道指定了应该向哪里发送日志数据：是发送给syslog，还是写在一个文件里，或是发送给named的标准错误输出，还是发送到位存储桶（bit bucket）。类别则规定了哪些数据需要记录。下面我们主要介绍一下文件通道和类别。
*/
/*
log_severity级别：
critical
error
warning
notice
info
debug [ level ]
dynamic
*/

/*
category语句是指定哪一种类别的数据使用哪个或者哪几个已经定义了的通道。在bind9中类别有：
default 类别匹配所有未明确指定通道的类别，但是不匹配不属于任何类别的消息。这些不属于任何类别的消息属于下面列出的这些类别。
general 包括所有未明确分类的BIND消息。
client 处理客户端请求。
config 配置文件分析和处理。
database 同BIND内部数据库相关的消息，用来存储区数据和缓存记录。
dnssec 处理DNSSEC签名的响应。
lame-servers 发现错误授权。
network 网络操作
notify 异步区变动通知。
queries 查询日志
resolver 名字解析，包括对来自解析器的递归查询的处理。
security 认可/非认可的请求。
update 动态更新事件。
xfer-in 从远程名字服务器到本地名字服务器的区传送。
xfer-out 从本地名字服务器到远程名字服务器的区传送。
*/

日志文件配置样例：

1
2
3
4
5
6
7
8
9
10
11
logging{
	channel query_log{
		file "query.log"  versions 3 size 20m; //最大保存三份，每份最大20m
		severity info;
		print_time true;
	};
	categray queries{
		query_log;
	};
};

include：引入其他文件

定义格式：

1
inlude filename;

keys：秘钥

不用人未定义，使用rndc-confgen可生成配置信息

controls:控制

定义格式：

1
2
3
4
5
6
7
8
9
10
11
controls {
inet ( ipv4_address | ipv6_address | * )
[ port ( integer | * ) ]

allow { address_match_element; ... }

[ keys { string; ... } ];

unix unsupported; // not implemented

};

控制配置文件样例：

1
2
3
4
5
controls {
     inet 127.0.0.1 port 953    //在127.0.0.1接口的953号端口进行监听
        allow { 127.0.0.1; }    //只接受127.0.0.1的连接，即只有在本机使用rndc,才能对named进行控制
       keys { "rndckey"; };     //使用名为rndckey的密钥才能访问
};

区域配置文件

在配置文件中以file来指定区域配置文件的位置

正向区域文件样例：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
$ cat db.club
$TTL	3600
$ORIGIN	divint3.club.

@	IN	SOA	divint3.club. divint3.gmail.com. (
			2003221		; Serial
			 604800		; Refresh
			  86400		; Retry
			2419200		; Expire
			 604800 )	; Negative Cache TTL
;
@	IN	NS	ns1.divint3.club.
@	IN	NS	ns2.divint3.club.
@	IN	A	47.93.124.161
www	IN	A	47.93.124.161
ns1	IN	A	47.93.124.161
ns2	IN	A	47.93.124.161

反向区域文件配置：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
$ cat db.47
$TTL	3600

124.93.47.in-addr.arpa.	IN	SOA	divint3.club.	divint3.gmail.com. (
					20032201	;
					1D		;
					1H		;
					1W		;
					3H 		;
);
@	IN	NS	ns1.divint3.club.
@	IN	NS	ns2.divint3.club.
9	IN	PTR	ns1.divint3.club.
9	IN	PTR	ns2.divint3.club.
9	IN	PTR	www.divint3.club.

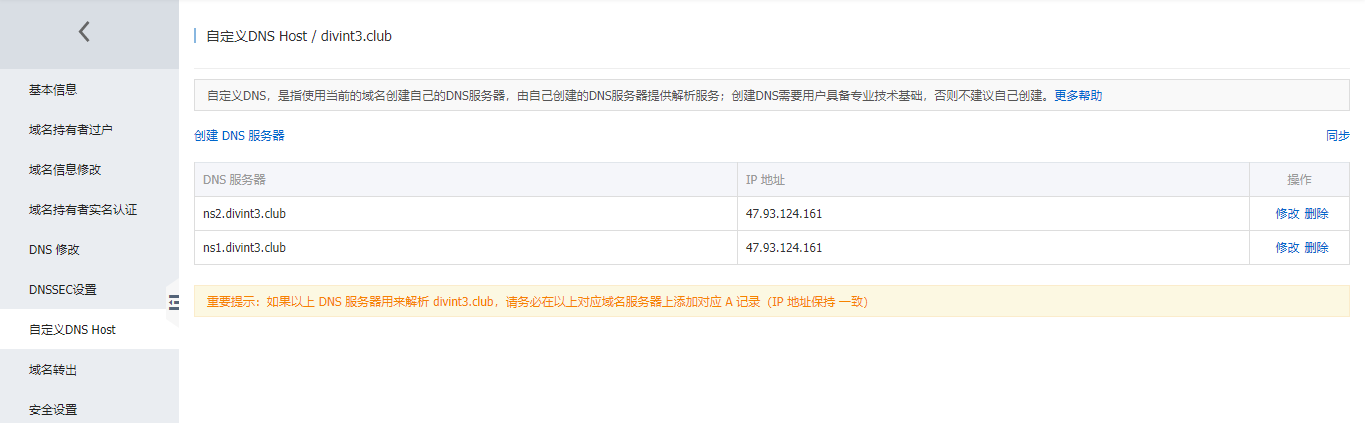

注册配置网络dns服务器-以阿里云为例

注意：网络dns服务器生效需要时间注册，并不是设置完之后直接可用，一定要在自己的dns服务器上写出dns服务器自己的A记录。

恰饭,恰饭
